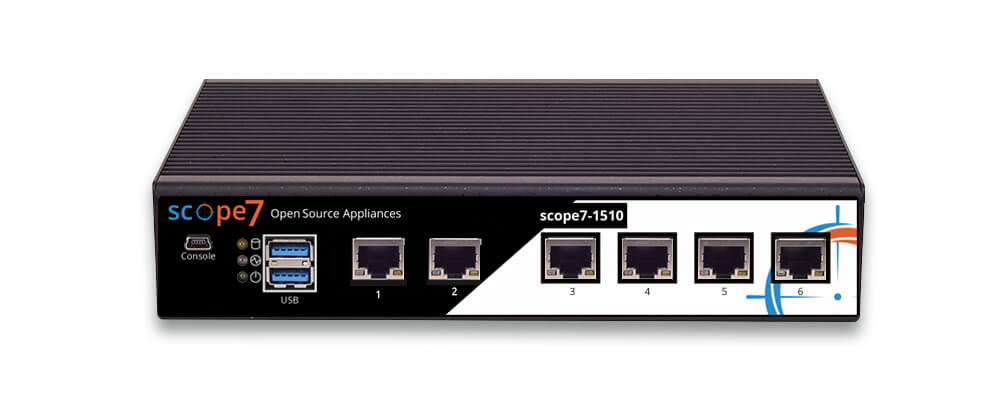

scope7-1510 Hardware Appliance
The scope7-1510 is suitable for branch offices and homeoffices. Completely pre-installed and partially configured with one of our available OpenSource solutions.
Overview - scope7-1510
Powered by Intel® Atom® C3000 (codenamed Denverton) CPU, the scope7-1510 features robust performance and Intel’s QuickAssist Technology, offering cryptographic acceleration and commercial-grade LAN functions in a 231mm x 200mm x 44mm form factor. It is the ideal fanless SFF desktop network security appliance for managing edge security at small and medium enterprises.
Key features
- Quad Core Intel® Atom™ CPU
- 6 x GbE LAN ports
- 2 x USB 3.0, 1 x Mini USB COM Port
- 8GB of RAM
- 32 GB SSD + 8 GB eMMC
- Mini-PCIe Expansion with SIM card slot
Technical details - scope7-1510
CPU
Intel® quad Core Onboard
BIOS
AMI BIOS 16MB
Memory Technology
DDR4 2400 MHz
Memory Capacity
8GB
SATA storage
32 GB SSD + 8 GB eMMC
Ethernet controller
2 x Intel i210AT, Intel SoC Integrated i354 with Marvell 88E1543 PHY
Default LAN
6 x GbE RJ-45
Console
1 x Mini USB
USB 3.0
2 x Type A
Expansion
1 x Mini-PCIe with SIM card slot
Reset
Yes
Processor cooling
Passive CPU heatsink
Fan cooling
Fanless
Certifications
RoHS, CE/FCC Class B, UL
Storage temperature
-20ºC to 70ºC
Operating temperature
0ºC to 50ºC
Dimensions (W x H x D)
217 mm x 44 mm x 145.5 mm (8.54" x 1.73" x 5.73")
Weight
1.2 kg (2.64 lbs)
Operating humidity
5% to 90% (non-condensing)
Storage humidity
5% to 95% (non-condensing)
Watchdog
Yes
Internal RTC
Yes

scope7® combines great open source solutions with attractive and powerful hardware. scope7® is a product of Landitec Distribution GmbH.
